K18 Simplygas
Modulating condensing gas/LPG and aerothermal renewable energy absorption heat pump.
High-efficiency heating and domestic hot water production with the 2-pipe system (alternating heating and buffer tank domestic hot water production).
Benefits
- Maximum efficiency with no electricity use
Gas + Renewable energies: up to 169% efficiency
A rational use of energy brings the best results in terms of performance. By using heat that is present in large quantities in nature – in this case, in the air – and a primary source such as natural gas, K18 absorption heat pumps deliver high performance with up to 169% efficiency. - High-efficiency heating and hot water no matter what, even at -25 °C
65 °C for heating
70 °C for domestic hot water
Thanks to the special features of the thermodynamic cycle, the performance of K18 is barely affected by external climatic conditions. This results in hot water production up to 70 °C even in extremely cold climates. They’ve also got an antifreeze function which works without the use of heating elements. - Real savings
-50% heating costs

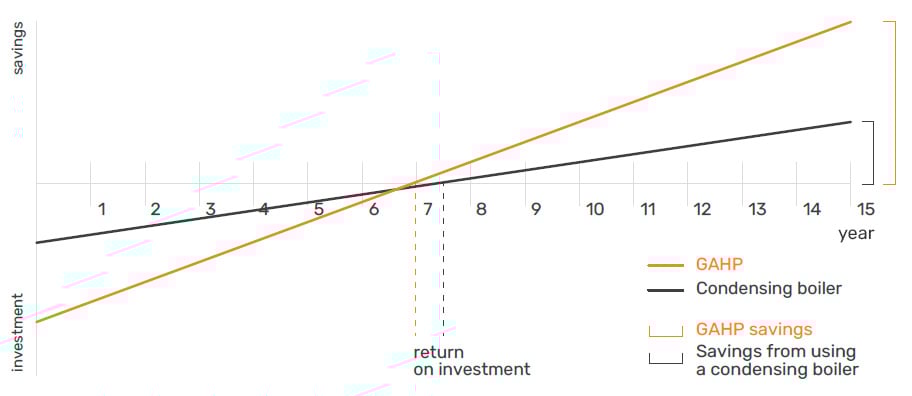

The achievable economic result of the high thermal efficiency of K18 over the whole lifetime of the system highlights the cost-effectiveness compared to condensing boiler technology.
The return on investment will be even quicker if the benefits and incentives available for technology focused on using renewable energy (like the K18) are taken advantage of.
- No increase in electrical power
Easy to install and can be integrated into any high- or low-temperature system. No chimney necessary, and no increase in electricity used. - Only natural refrigerants
F-Gas free and Zero GWP
By using a natural refrigerant (ammonia), which is not subject to restrictions and declaration requirements, K18 has a near-zero impact on global warming and solves the problem of HFCs. It is also exempt from F-Gas regulations.
The European Commission Joint Research Centre, in a study on different air conditioning technologies, has highlighted that the gas heat pump is the technology with the lowest overall environmental impact in terms of emissions harmful to human health (NOx, PM, VOC, COx).
Applications
K18 Simplygas is the ideal solution for heating and producing domestic hot water in single and two-family residences, offices, small commercial premises and in any application where the required energy requirement is less than 18 kW.
Heating
Heat pump production of hot water for heating up to 65 ° C.
ACCESSORIES FOR HEATING FUNCTION
Chronothermostat cod. OCDS007

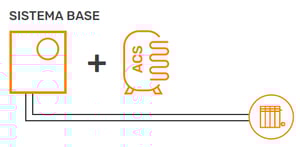

Heating+ DHW
- Heat pump production of hot water for heating and domestic hot water with storage up to 70 ° C.
- Integrated management of the temperature probe (to be inserted in the DHW tank).
- Integrated management of external three-way valve.
- Predisposition for DHW programming in 5 modes.
ACCESSORIES FOR DHW FUNCTION
- Storage boiler cod. OSRB012 or cod. OSRB004.
- Water temperature probe cod. OSND004.
- 3-way diverter valve cod. OVLV007

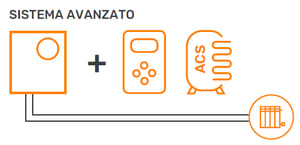

Advanced management of secondary circuits.
ACCESSORIES FOR ADVANCED DHW FUNCTION (IN ADDITION TO THE BASIC FUNCTION)
Centralized control cod. OQLT021.
Technical table
HEATING MODE(1)
ErP Energy Class (55°C application): A++
Working point A7/W35(2) | G.U.E. gas utilization efficiency(3): 169%
Working point A7/W35(2) | heating capacity: 18,9 kW
Working point A7/W50(4) | gas utilization efficiency(5): 157%
Working point A7/W50(4) | heating capacity: 17,6 kW
Max outlet water temperature | heating: 65°C
Nominal max electrical power(6): 355 W
Sound pressure Lp at 5 metres(7) | free field, direction factor: 2 | max speed fan: 43,0 dB(A)
Sound pressure Lp at 5 metres(7) | free field, direction factor: 2 | min speed fan: 40,0 dB(A)
(1) As per calculation methods of EN12309.
(2) Outdoor temperature 7 °C, outlet hot water temperature 35 °C.
(3) Equivalent to COP 4.22 on energy conversion factor of 2.5.
(4) Outdoor temperature 7 °C, outlet hot water temperature 50 °C.
(5) Equivalent to COP 3.92 on energy conversion factor of 2.5.
(6) Water pump electrical consumtpion not included.
(7) Lw sound power 65 dB(A) at max speed fan, 62 dB(A) at min speed fan. Sound power values measured according to EN ISO 9614.
DESIGN THERMAL OUTPUT- kW
| Outdoor project temperature °C | High temperature distribution terminals (hot water outlet temperature 55 °C) | Low temperature distribution terminals (hot water outlet temperature 35 °C) |
| -25 | 11,8 | 13,0 |
| -20 | 12,0 | 14,0 |
| -15 | 12,5 | 15,0 |
| -10 | 13,0 | 16,9 |
| -5 | 14,0 | 17,7 |
| 0 | 15,0 | 18,0 |
| 5 | 16,0 | 18,5 |
| 10 | 17,0 | 19,0 |
